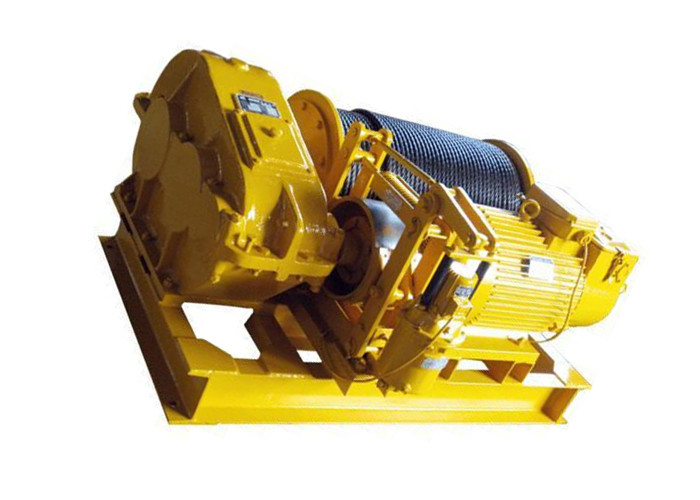

Title: Mining Underground Winder Scheduling Winch with Bule or Yellow Colar
Description:
Mining Winch is mainly used for prop pulling caving under coal mine.
Especially applicable for thin coal seam or heavy pitch working face,and on the various
coal mining working face to recycle metal support which sink coal floor.It also could
use for traction working.
The main part description:
We can design the different grooving types- LBS parallel grooving and helical grooving.
The LBS grooved reel is processing into two parallel groove and section and two groove section, which could make sure the rope arranged tidily on each other. Also it can prevent cross&mess in rope spooling working happening. And then, it will lower the rope damage,extend the rope life.
Product Structure:
- Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
- In addition, if you are facing the solution that your drum & reel is broken,but change a drum&reel will pay a lot. We can manufacture a split-sleeve as your requirement.
- The LBS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smmoth drum to provide a grooving pattern.Either helical or LBS parallel grooves can be carved into the sleeves. As with all LBS drums,the grooving in split sleeves is engineered to match the specific rope construction,diameter and length, and to suit the application.
Why you shoud choose us:
1)10 years LBS design and produce experience
2)LBS patent award by government
3)The specilized in design and drawing for one of the customer according the different usage
4)The successful case with China big government project
5) Top quality with competitive price.
FAQ:
| Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
| Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc |
| Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
| Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures. |
| Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost. |
| Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
